Description

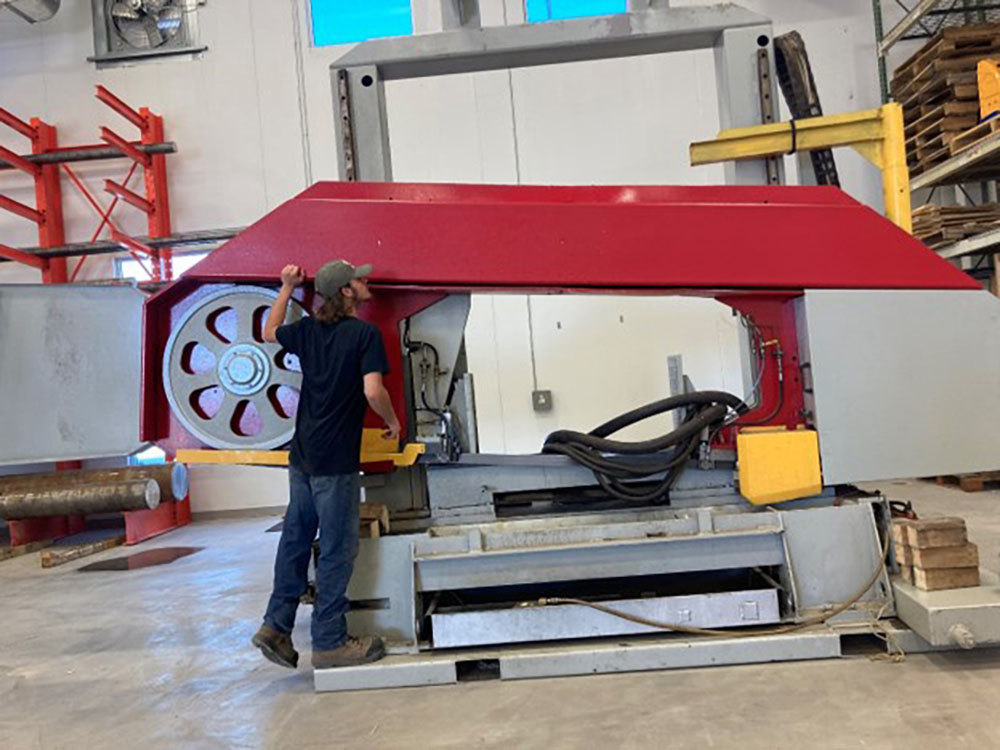

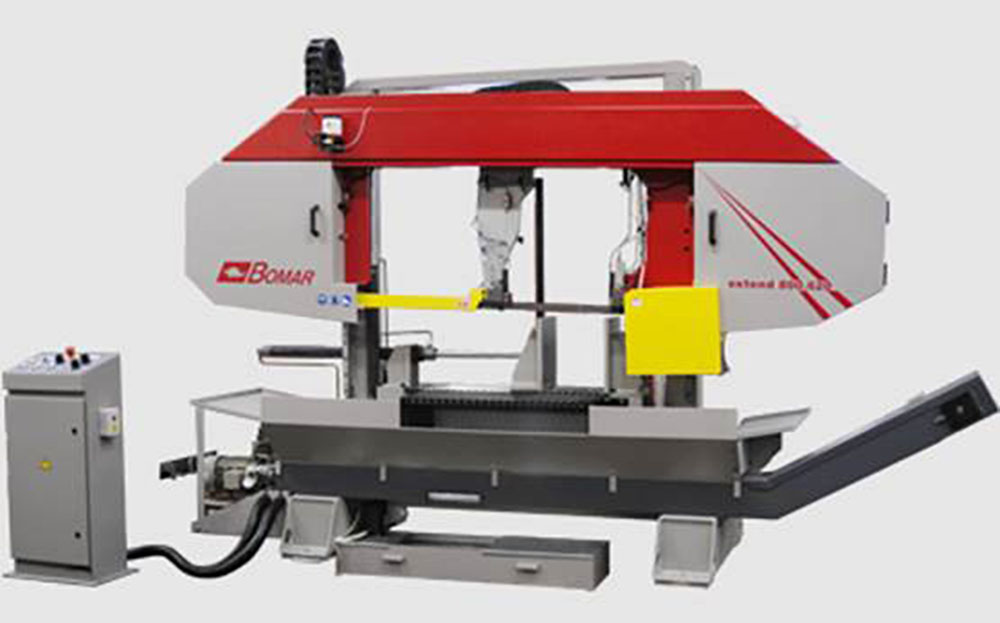

This is a Bomar Extend 1000.820 semi-automatic double column band saw. It has a heavy saw frame, a powerful industrial saw drive, and many other standard equipment that satisfies even the highest demands.

The 2-1/8” (optional 2-5/8”) saw blade guided in precise carbide guides guarantees highest accuracy. For extra vibration dampening the saw head is filled with polymer casting which increased cutting performance and blade life.

The machine is equipped with large drive and idler wheels for long blade life. Operation of the machine is fast and simple due to the free-standing control panel with PLC-control and the full stroke clamping vise.

§ Fully Hydraulic
§ Feed Force Control
§ Semi-Automatic Cutting Cycle
§ Hydraulic Controlled Down Feed
§ Saw Blade Tension & Breakage Monitor
§ Height Setting of the Saw Head from the control panel
§ Saw Head filled with polymer casting
§ Safety Switch on Band Wheel Door
§ Free Standing PLC Control
§ Integrated Coolant System
§ Carbide Saw Blade Guides
§ Infinitely Adjustable Speed
§ Hydraulic Clamping Vise
§ Chip Brush
§ Digital Speed Display

TECHNICAL DATA

Saw Band Dimensions (L × H × W) = 30’ 5“ x 2-1/8’’ (2-5/8“) x 0.063’’
Saw Drive = 10.2 hp (12.2 hp)
Blade Speed = 50 – 295 FPM
Dimensions (W × L × H) = 170’’ x 60’’ x 126’’
Weight = 18,500 lbs.
Voltage = 230 V / 60 Hz / 3-phase

CUTTING CAPACITY

Angle O = inch 32.3º / mm = 820
Angle — = inch 39.4 x 32.3 / mm = 1000×820
Angle | = inch 39.4 x 32.3 / mm = 1000×820
Angle square = inch 32.3 x 32.3 / mm = 820×820
